MSI Mag Pano M100R PZ M-ATX Mid Tower Gaming PC Case - White (4 ARGB Fans Included)

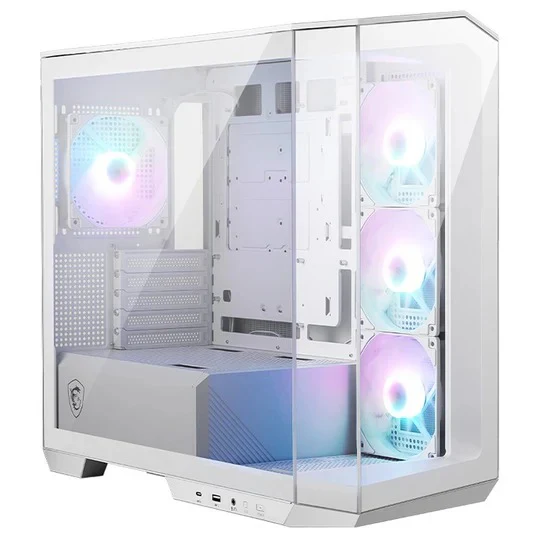

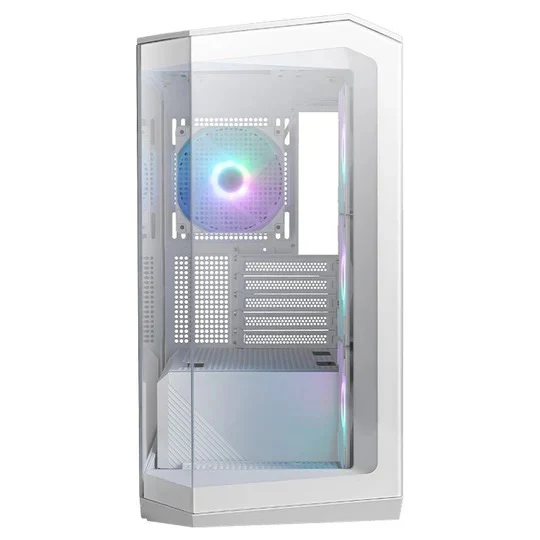

Micro-ATX tower with a 270-degree tempered-glass corner and back-connect motherboard support. Ships with four ARGB PWM fans pre-installed (three 120 mm reverse-blade intake on the side, one 120 mm rear exhaust). Supports a 360 mm top radiator. GPU clearance 390 mm. CPU cooler height 175 mm. Bottom magnetic dust filter. Color: White.
Key Features
- Back-connect (PROJECT ZERO) motherboard ready
- 270-degree panoramic tempered glass
- 4 Ă— pre-installed ARGB PWM fans
- Top radiator support up to 360 mm
- Five expansion slots
- Bottom magnetic dust filter
- Front I/O with USB-C
Specifications
- Motherboard support: Micro-ATX, Mini-ITX
- Dimensions (D Ă— W Ă— H): 440 Ă— 235 Ă— 405 mm
- Materials: SPCC steel, tempered glass, ABS
- Expansion slots: 5
- Drive bays: 1 Ă— 2.5", 1 Ă— 2.5"/3.5" combo (supports 2 Ă— 2.5" or 1 Ă— 2.5" + 1 Ă— 3.5")
- Pre-installed fans: Side 120 mm Ă—3 (reverse-blade ARGB PWM), Rear 120 mm Ă—1 (ARGB PWM)
- Fan mounts: Top 3 Ă— 120 mm or 2 Ă— 140 mm; Side 3 Ă— 120 mm; Rear 1 Ă— 120/140 mm; Bottom 1 Ă— 120 mm; PSU shroud 2 Ă— 120 mm
- Radiator support: Top 120/240/360 mm; Rear 120/140 mm
- Clearances: GPU up to 390 mm; CPU cooler up to 175 mm; PSU up to 200 mm
- Power supply: ATX, bottom mount
- Front I/O: USB Type-C Ă—1, USB 3.2 Gen1 Type-A Ă—1, audio Ă—1, mic Ă—1, power, LED button
Original: $113.78
-70%$113.78
$34.13Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Micro-ATX tower with a 270-degree tempered-glass corner and back-connect motherboard support. Ships with four ARGB PWM fans pre-installed (three 120 mm reverse-blade intake on the side, one 120 mm rear exhaust). Supports a 360 mm top radiator. GPU clearance 390 mm. CPU cooler height 175 mm. Bottom magnetic dust filter. Color: White.
Key Features
- Back-connect (PROJECT ZERO) motherboard ready
- 270-degree panoramic tempered glass
- 4 Ă— pre-installed ARGB PWM fans
- Top radiator support up to 360 mm
- Five expansion slots
- Bottom magnetic dust filter
- Front I/O with USB-C
Specifications
- Motherboard support: Micro-ATX, Mini-ITX
- Dimensions (D Ă— W Ă— H): 440 Ă— 235 Ă— 405 mm
- Materials: SPCC steel, tempered glass, ABS
- Expansion slots: 5
- Drive bays: 1 Ă— 2.5", 1 Ă— 2.5"/3.5" combo (supports 2 Ă— 2.5" or 1 Ă— 2.5" + 1 Ă— 3.5")
- Pre-installed fans: Side 120 mm Ă—3 (reverse-blade ARGB PWM), Rear 120 mm Ă—1 (ARGB PWM)
- Fan mounts: Top 3 Ă— 120 mm or 2 Ă— 140 mm; Side 3 Ă— 120 mm; Rear 1 Ă— 120/140 mm; Bottom 1 Ă— 120 mm; PSU shroud 2 Ă— 120 mm
- Radiator support: Top 120/240/360 mm; Rear 120/140 mm
- Clearances: GPU up to 390 mm; CPU cooler up to 175 mm; PSU up to 200 mm
- Power supply: ATX, bottom mount
- Front I/O: USB Type-C Ă—1, USB 3.2 Gen1 Type-A Ă—1, audio Ă—1, mic Ă—1, power, LED button
